Portable TS recording analyzer
"HACOBE-On-premise"
Introduction
Our TS analyzer is familiar to everyone under the name of "HACOBE".
The official name is "portable TS recording analyzer HACOBE", but as the name suggests, it is a "portable" product that can "record" and "analyze" "TS".
HACOBE, which supports not only TS input but also RF/IF input, has been used by many customers, not only in Japan, since its appearance at a domestic exhibition in 2009.

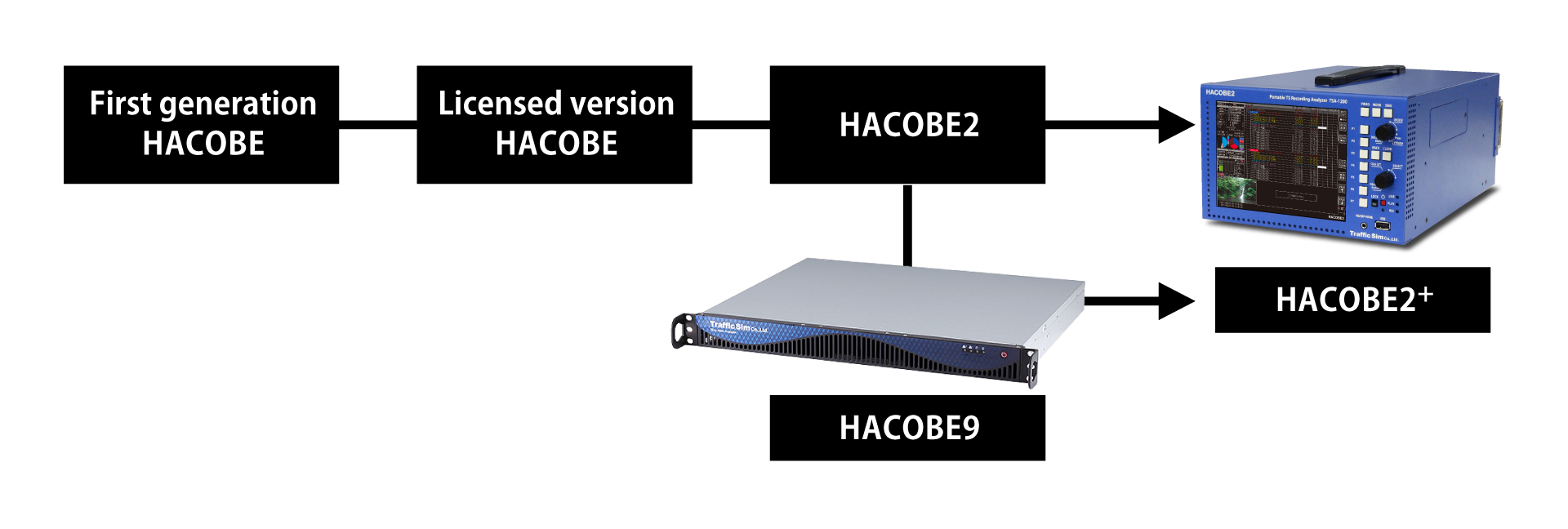

After the release of the first HACOBE (TSA-1000P/PQ), which was jointly developed with Tohoku Broadcasting Co., Ltd., the current HACOBE2 was completed through the licensed version.
HACOBE2 supports pseudo modulation output of various broadcast waves, IP input/output and monitoring, and remote control from your PC is now possible.
"HACOBE9" of "rack mount type" has been added as a brother product.
And in order to support 4K broadcasting, HACOBE2 has evolved into "HACOBE+ (Hakobe 2 Plus)" with an H.265 decoding function.
HACOBE Series
The HACOBE series can be adapted to the customer's purpose by adding various functions as necessary.

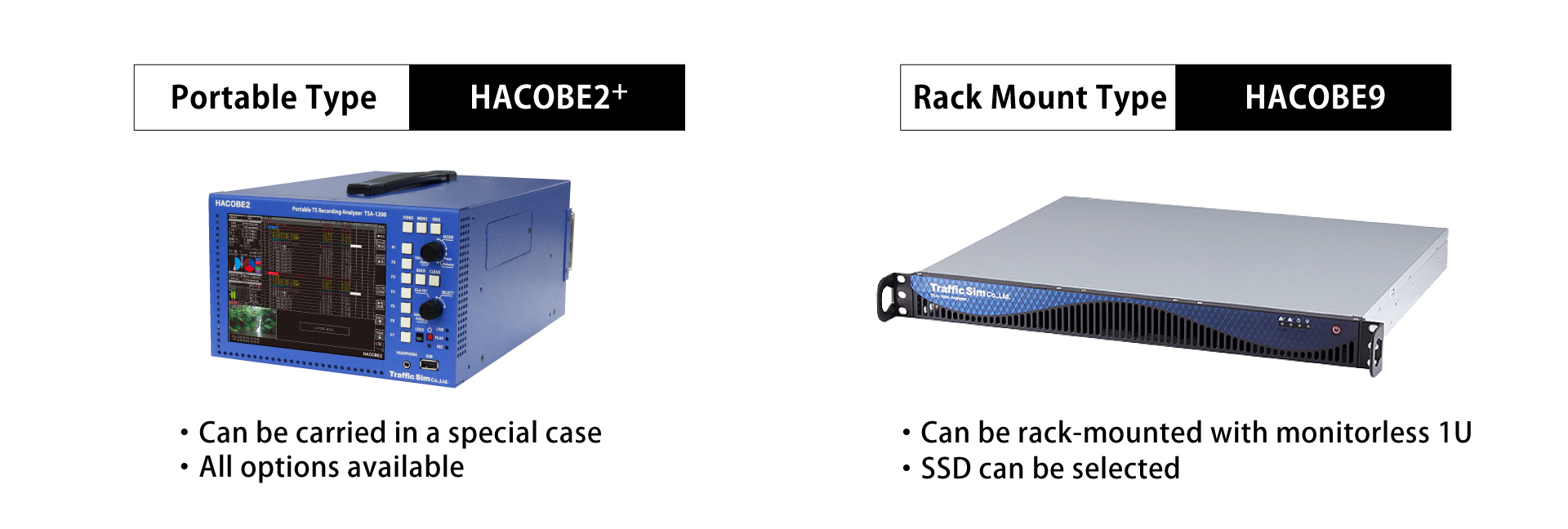

Select from two types of base units equipped with basic analysis functions: portable type and rack mount type.
After selecting the base unit, select and add the necessary options.
Where HACOBE2+ and HACOBE9 are active
The portable HACOBE2+ is useful for confirming communication during work and for maintenance work. You can check the video and audio by descrambling various options according to the signal to be analyzed. You can use it in various scenes such as bringing it to the master room or transmitting station.
The rack-mounted HACOBE9 can be installed in a rack and accessed from a monitoring console or office floor. You can monitor the status of IP streams by connecting to the output of a matrix switcher, checking the status of each signal, and selecting the TSoverIP option. HACOBE9s are active in the master rack rooms.
HACOBE2+ and HACOBE9 are used by terrestrial/satellite/CATV/IPTV broadcasting stations, telecommunications carriers, and receiver manufacturers in Japan.
Common functions
You can analyze the TS data in our company's simultaneous recording system by using HACOBE via the network. You can easily switch multiple simultaneous recording units.
| TS analysis | Provide packet analysis/section analysis/packet cycle/table_id display/PCR jitter/PTS graph display of input TS. |
|---|---|
| Video/audio decoding | Decode video and audio. Support service switching and video/audio switching. *Voice confirmation is only for HACOBE2+. *The descrambling option is required for decoding scrambled TS. |
| Together | Analyze the TS data in our company's simultaneous recording system by using HACOBE via the network. Easily switch multiple simultaneous recording units. |
| External TS analysis | Upload TS data to HACOBE's shared folder via network and analyze it. * HACOBE2+ can connect USB storage and analyze TS files in the storage. |
| Remote control | Remote control from your PC via the network. |
Features of HACOBE2+
The feature of HACOBE2+ is that various functions can be put together in one housing and you can carry it to anywhere.

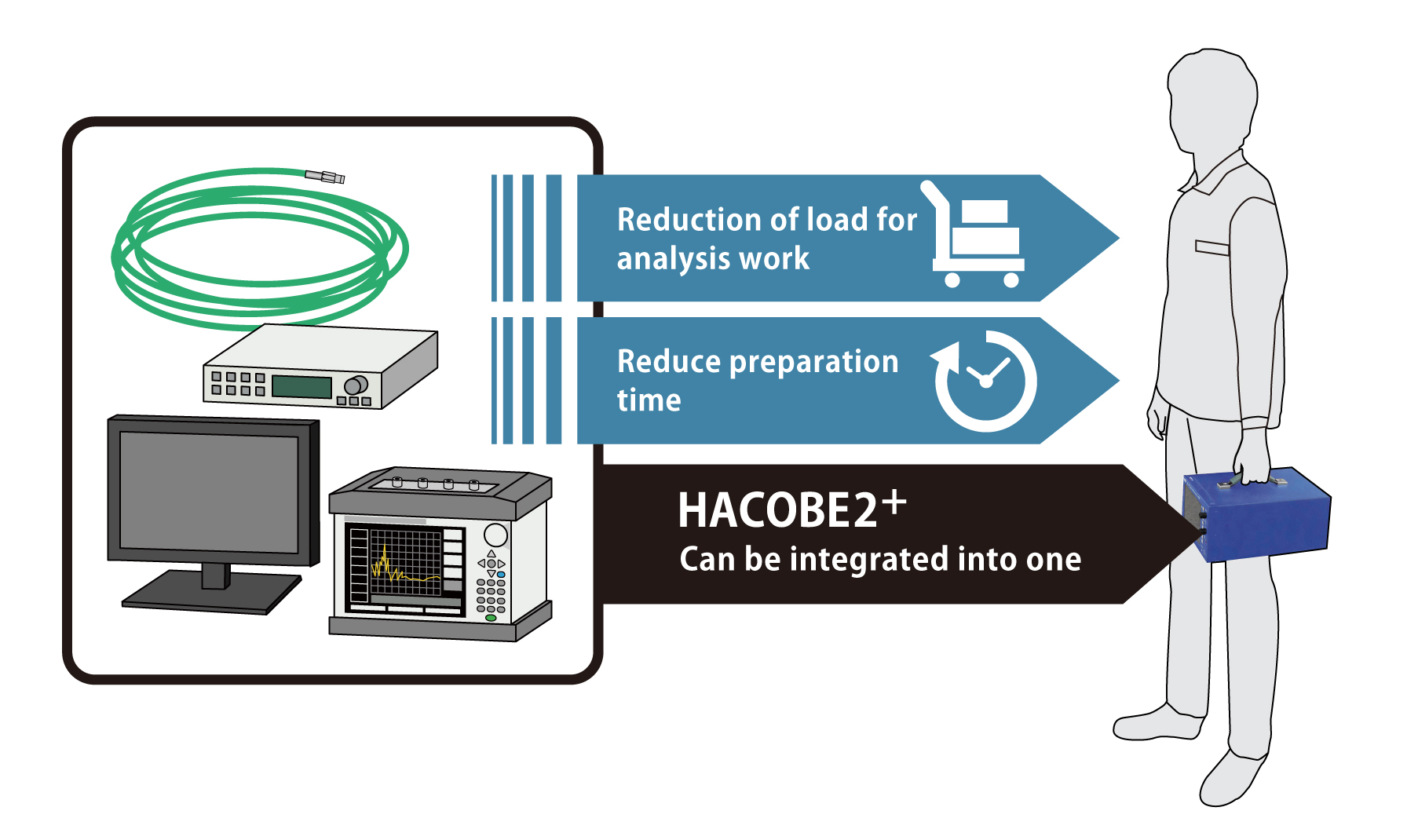

Until now, you have to prepare dedicated equipment for each field and bring it to the site when checking the reception of digital broadcasts and isolating work in the event of a failure.
You can shorten the preparation time by bringing in one integrated HACOBE2+.
Therefore, you can start analysis work quickly, such as when an urgent response is required.
Product specifications
| Product type | TS Analyzer | |||
|---|---|---|---|---|
| Product name | Portable TS Recording Analyzer "HACOBE2+" | TS Analyzer "HACOBE9" | ||
| Product model number | TSA-1200 | TSA-1900 | ||
| Input | TS input | DVB-ASI×2 Recording/playback exclusive mode: Max. 215Mbps Simultaneous recording/playback mode: Max. 60Mbps DVB-ASI x 1 |
DVB-ASI×1 | |
| Optional | Terrestrial digital RF input | F terminal（75Ω×1） VHF 1ch～12ch（During NBR preset operation：7～13）（※1） UHF 13ch～62ch（During NBR preset operation：14～69）（※1） |
-- | |
| BS digital/110°CSIF input | F terminal（75Ω×1） BS digital, BS1-23 110° CS digital, ND2-24 |
-- | ||
| CATV RF input | F terminal（75Ω×1） CATV 13ch to 63ch UHF 13ch to 62ch |
-- | ||
| Output | TS output | DVB-ASI×2 Switchable between input TS monitor OUT and recording TS output TS output synchronized with an external clock is possible |
-- | |
| Optional | Various modulation outputs | F terminal（75Ω×1） | -- | |
| Contact | Optional | input/output | 2 inputs, 7 outputs（25pin×2） | 2 outputs（D-sub 9pin) |
| Same record | Optional | Simultaneous recording function | Built-in HDD (500GB: up to 400GB used) allows loop recording of about 2 days of digital terrestrial broadcasting TS | |
| Built-in HDD increase | By increasing the capacity to the built-in HDD (2 TB: used up to 1.6 TB), loop recording for about 8 days with terrestrial digital broadcasting TS is possible | |||
| TS playback | Recording/playback exclusive mode: Max. 215Mbps Simultaneous recording/playback mode：Max.100Mbps |
|||
| parsable/decodable TS format |
188/204bytes MPEG-2 TS 192/208bytes TTS（Variable rate TS with time stamp) ISDB-T terrestrial digital broadcasting 12seg/1seg ISDB-S BS/110°CS 124°/128°CS IPTV TS ISDB-Tb |
|||
| Decoder specification | Picture | MPEG-2 ※MPEG-2 video mode conforms to ARIB/STD-B21/6.2.1 video signal output format |
||
| H.264/AVC | ||||
| Ｈ.265/HEVC (4K 10bit video decoding operates in skip decoding mode*.） *Skip decoding mode: Operation mode that does not decode B slices |
||||
| Audio | MP1-L1/L2/L3 MP2-L1/L2/L3(MPEG-2 BC) AAC-LC/LTP/MAIN/SSR/HE-AAC/ALS/BSAC LPCM-16bit/20bit/24bit |
|||
| Card slot | Slot for CAS card * CAS card slot x 2 (B-CAS, C-CAS shared) |
|||
| Descramble | Optional | B-CAS descrambling | T* A separate B-CAS card (yellow: for limited use / black: for business use) is required. Please prepare by yourself. *General B-CAS cards (red) cannot be used. |
-- |
| TRUMP descrambling | Compatible with terrestrial digital broadcasting | |||
| C-CAS descrambling | Compatible with CATV *A separate C-CAS card is required. Please prepare by yourself. | -- | ||
| Time synchronization | NTP | |||
| External I/F | USB port | Get from shared folder | ||
| Monitor output | External monitor output | XGA(1024×768）D-SUB15pin / HDMI | Access via VNC | |
| LCD panel | 6.5 inch LED backlight LCD / XGA(1024×768) | -- | ||
| Audio output | Built-in speaker | ○（monaural） | -- | |
| Headphone jack | ○（stereo） | -- | ||
| Power supply | DC12V（Compatible with 9 to 29V） | AC100Ｖ | ||
| Connector shape | Canon connector XLR 4PIN male | -- | ||
| When using an AC adapter | AC100V（Dedicated AC adapter included） | -- | ||
| Power consumption | 85W max / 85VA | 150W max / 200VA | ||
| サイズ[W×H×D(mm)] | 210×132.5×310（Excluding protrusions） | 438×43×370（Excluding protrusions） | ||
| Weight | about 5.5kg | |||
*1 NBR presets support Brazilian broadcasting standards.
