Cloud simultaneous recording service that can be provided in the cloud/hybrid cloud

RecShareCLOUD is a cloud version of the simultaneous recording system that has been on sale since 2006. The UI is made to looks like TV listings in newspaper in Japan, so anyone can operate it without a manual.

By moving the mouse over the program guide UI, thumbnails will be displayed and you can check that part, and you can quickly search for the scene you need.
In addition, the web player of RecShareCLOUD does not require installation or any plug-ins, and you can use it from anywhere as long as you have Google Chrome.

For example, you can easily build the systems such as a system that collects materials from venues nationwide and performs simultaneous recording/playback/extraction, a system for confirming broadcasts from all bases, and a material bank for large-scale sports competition.
Since RecShareCLOUD is a cloud service, you can flexibly solve various problems such as　considering the number of users, asset management, necessity of replacement and maintenance.

Introduction video

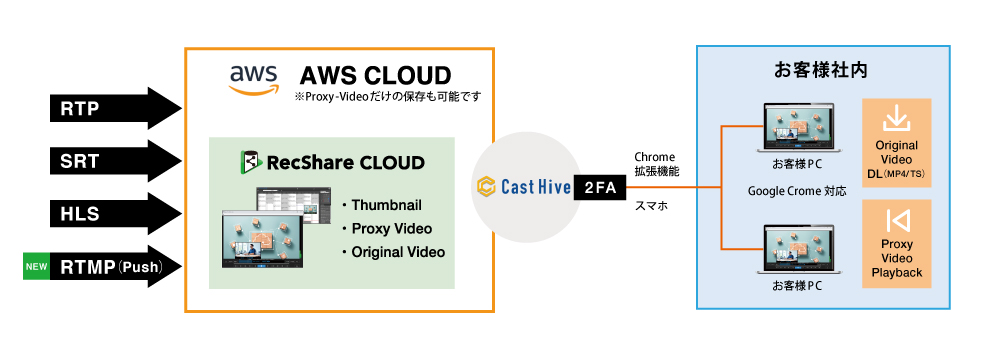

System image (cloud configuration)

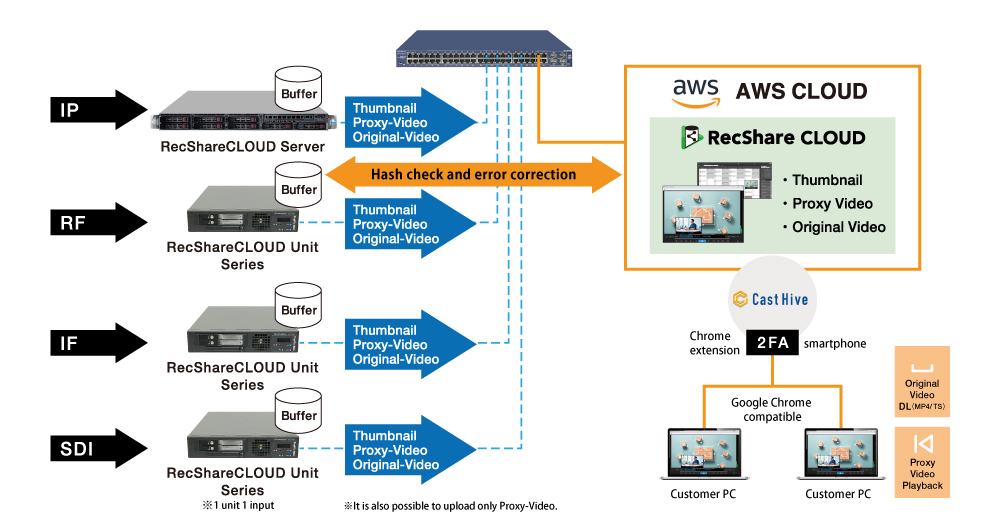

System image (hybrid cloud configuration)

Service features

• Simultaneous recording for SRT/HLS/RTP-FEC is completed in the cloud.
  In the case of cloud configuration, the preparation time is short and you can start using it immediately.
• In the case of hybrid cloud configuration, on-premises units have buffers and perform hash checks with cloud data. By this mechanism, RecShareCLOUD can handle uploads such as packet loss during line failures, which has been a bottleneck.
  In addition, you don't need expensive dedicated lines.
  * Tethering environment demonstration experiment completed with SONY PDW-850 x NEL MVE5000
• Thumbnails will be displayed by moving the mouse over the program guide UI, you can quickly search for the scene you need.
• Web player does not require add-on/plug-in/installation of dedicated software. (Google Chrome compatible)
• Anyone can easily create the material clip because the IN point / OUT point can be determined while looking at the thumbnail.
• In addition to downloading files to your local PC, you can upload to any S3 bucket.
• Easy to expand units and add users, and possible to increase or decrease the scale according to the usage situation.
• Maintenance and HW repair are also included in the subscription, so you don't have to worry about breakdowns or replacements.
• A contract from 1 month is available.
  Monthly/yearly contract is available.

Functions

• Simultaneous recording of various streams (SRT / HLS / RTP-FEC / RTMP / RF / IF / SDI)
• Program guide display (whole program guide / weekly program guide)
• Search (program name / program details)
• Program guide linking (*Free linking is possible for our format) If the stream includes a program guide, it will be generated automatically.
• Anyone can easily operate the material clip because the IN point/OUT point can be determined while looking at the thumbnail.
• Trick play (frame forward / frame reverse / -30 -15 ・ +15 +60 jump / double speed (1.5 / 2 / 5 / 10)
• TS-DL /MP4-DL /S3 upload
• Screen capture
• Channel group settings
• Authorization of DL and access group
• Various settings
  User log / User management / Channel group settings / Notification edit / MP4 watermark settings / Channel settings / System settings / Personal settings / Help / Feedback
  * There are differences in the display items for administrators and users.

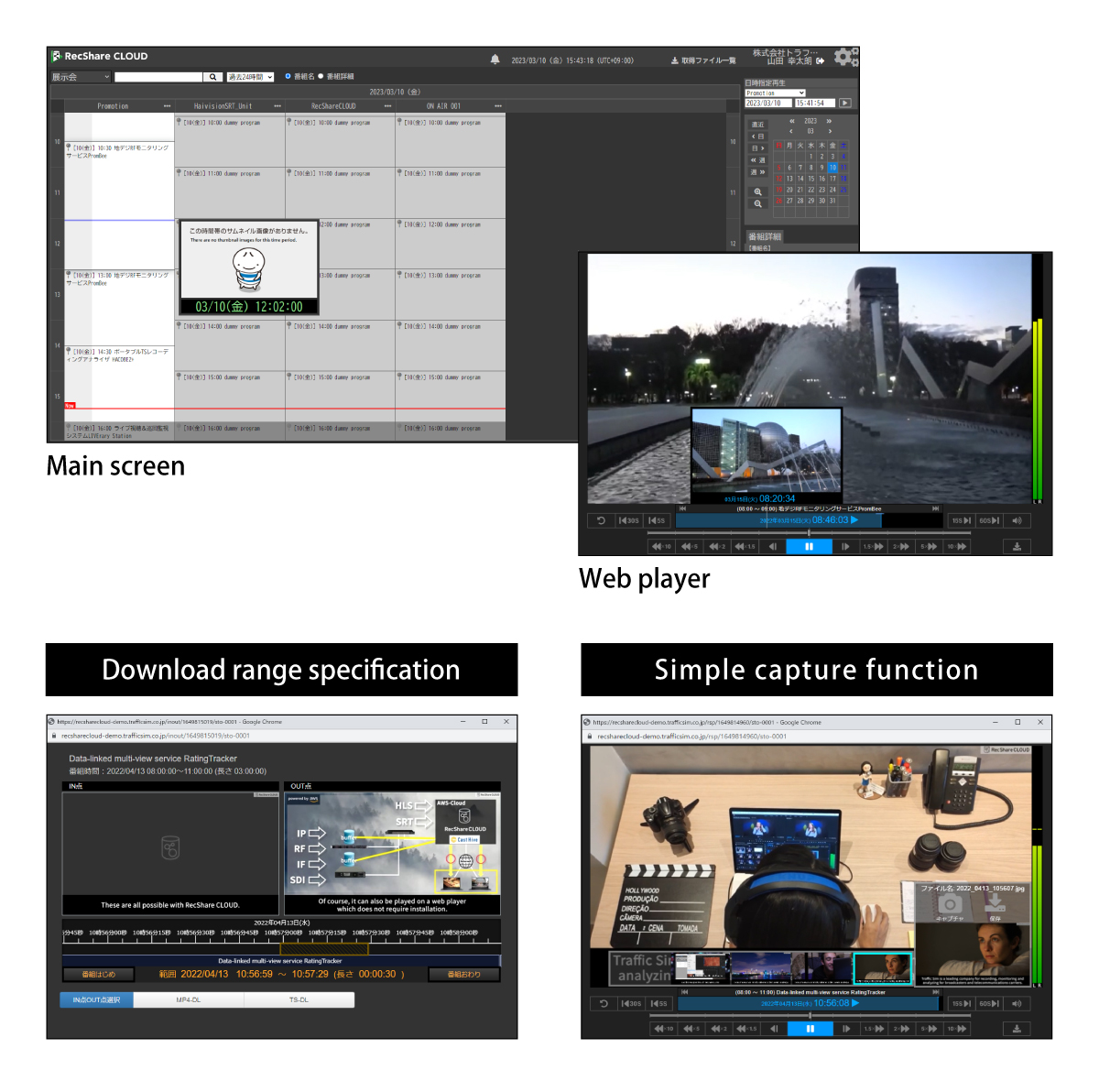

Screen image
