Low-latency video return cloud service from anywhere in the world "LiveShare"

A new era monitoring system that can be used on any device with a PC / smartphone / tablet and a browser.

LiveShare is a cloud service that allows you to monitor return video with low latency from anywhere in the world. You can use LiveShare not only on PCs, but also on smartphones and tablets. No special software required, just a browser.

Setting up a monitoring environment is also easy. Simply connect the signal you would like to see to the pre-configured capture unit sent from Traffic Sim, and you will be able to check the video over the Internet.

You can watch multiple signals at the same time, too. Unlike conventional return systems, you can check the on-air signal and the signal from the studio on the same screen.

Furthermore, by using multi-view with up to 6 screens, you can easily build a simple operation status monitoring system even outside the broadcast area.

    【Use Cases】
  • Low-latency return to the relay site.
  • Simultaneously display on-air signals and studio images for cueing on the relay site.
  • Staff in charge of programming and press can check on the go when dealing with special programs.
  • Monitor the system operation status at home outside the broadcast area.
  • Remote Performer Confirms On Air.
  • Remotely check all points while on an overseas business trip.

Introduction video

Feature

  • No software installation required.
    You can use LiveShare immediately from any device as long as there is a browser.
  • Low latencyv
     Less than 0.5 seconds when viewing via LiveShare compared to the original signal.
    ※ The latency depends on network speed, type of signal received and playback rate.
  • Muiti-View
    PC:Single screen/ 2 screens/ 3 screens/ 4 screens/ 6 screens
    Smartphone:Single screen/ 3 screens
  • Receivable signals
  • ISDB-T IP input type
    DVB-ASI input type
    RF input type
    ISDB-S BS
    ISDB-S e2
    IP input type
    DVB-ASIv input type
    RF input type
    HD-SDISDI input type
    IP input type
    SRT
    RTMP
    Received by a virtual unit on the cloud.
    ※ The latency is slightly large.
  • Selectable return rate according to bandwidth.
     Low(0.45 Mbps) / Medium(0.80 Mbps) / High(3.00 Mbps) ※ Rough value

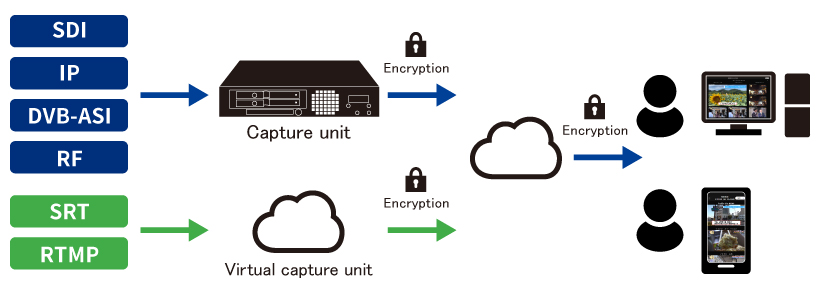

System image

System image

Price

  • Cloud version LiveShare is a subscription service that can be contracted from a minimum of 1 month.
  • Monthly fee Capture unit license $ 600 / unit ~
    User license $ 18 / person
    ※ In addition to the above costs, you need pay-per-use will be charged according to the amount of video viewed.
    ※ User license is linked to user's email address.
    ※ Regarding capture units for SDI, in addition to the 1-input version, we are developing 2-input and 4-input versions.

Selectable configuration options ~On-premise version/Half cloud version~

In addition to the cloud version, LiveShare offers on-premises and half-cloud options.
In particular, customers who have introduced our recording system can use the server of the recording system as a capture unit of LiveShare, so you can use the on-premises version and half cloud version just by adding options.

  • On-premises version
    For customers who want to monitor video only in-house.
  • Half-cloud version
    For customers who basically want to monitor the video only in-house, but occasionally want to check it from outside.
    ※ The on-premises and half-cloud version of LiveShare has a different pricing structure than the cloud version.

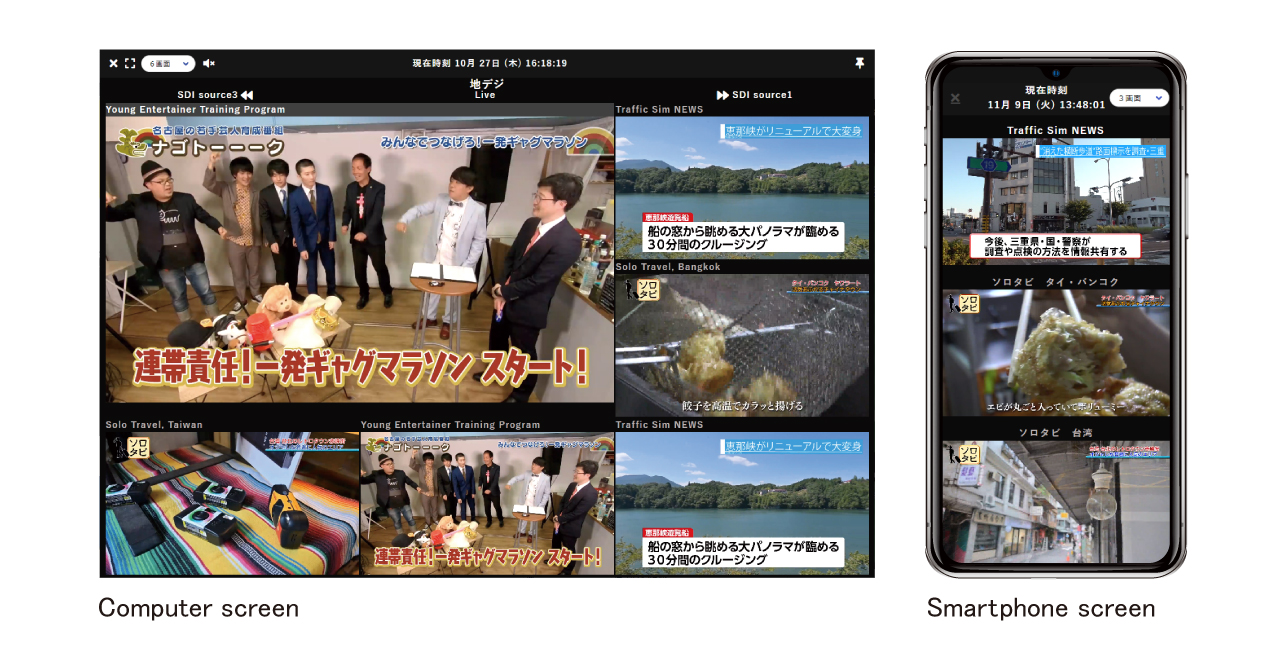

Screen image

Screen image
